Structural Components of the Bridge

• The bridge consists of five main spans, each 20 meters apart.

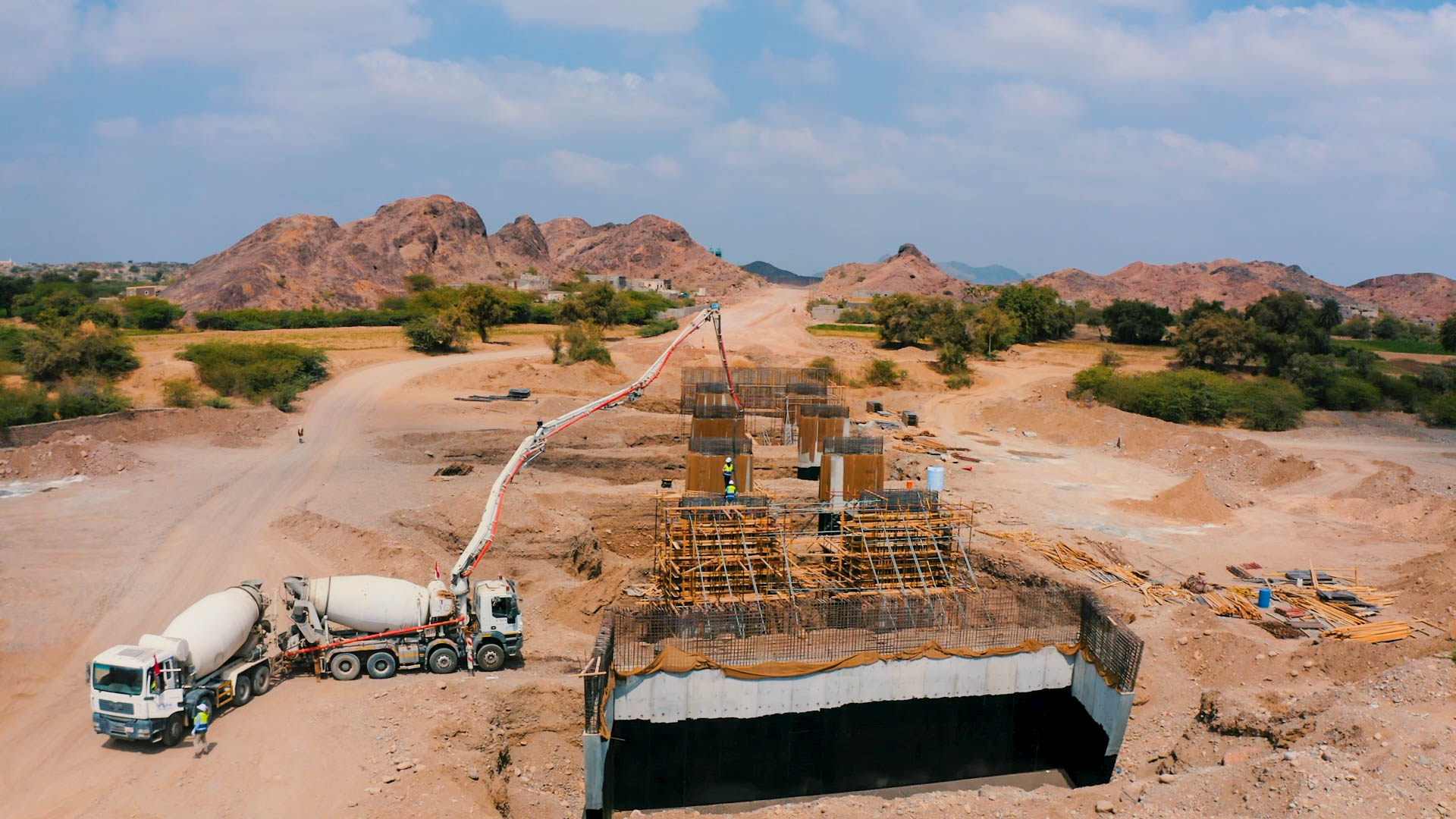

• Every span rests on two massive reinforced concrete piers, each measuring 4.5 meters in width and 1.5 meters in thickness.

• The piers are connected by crown beams, supporting five primary girders above them.

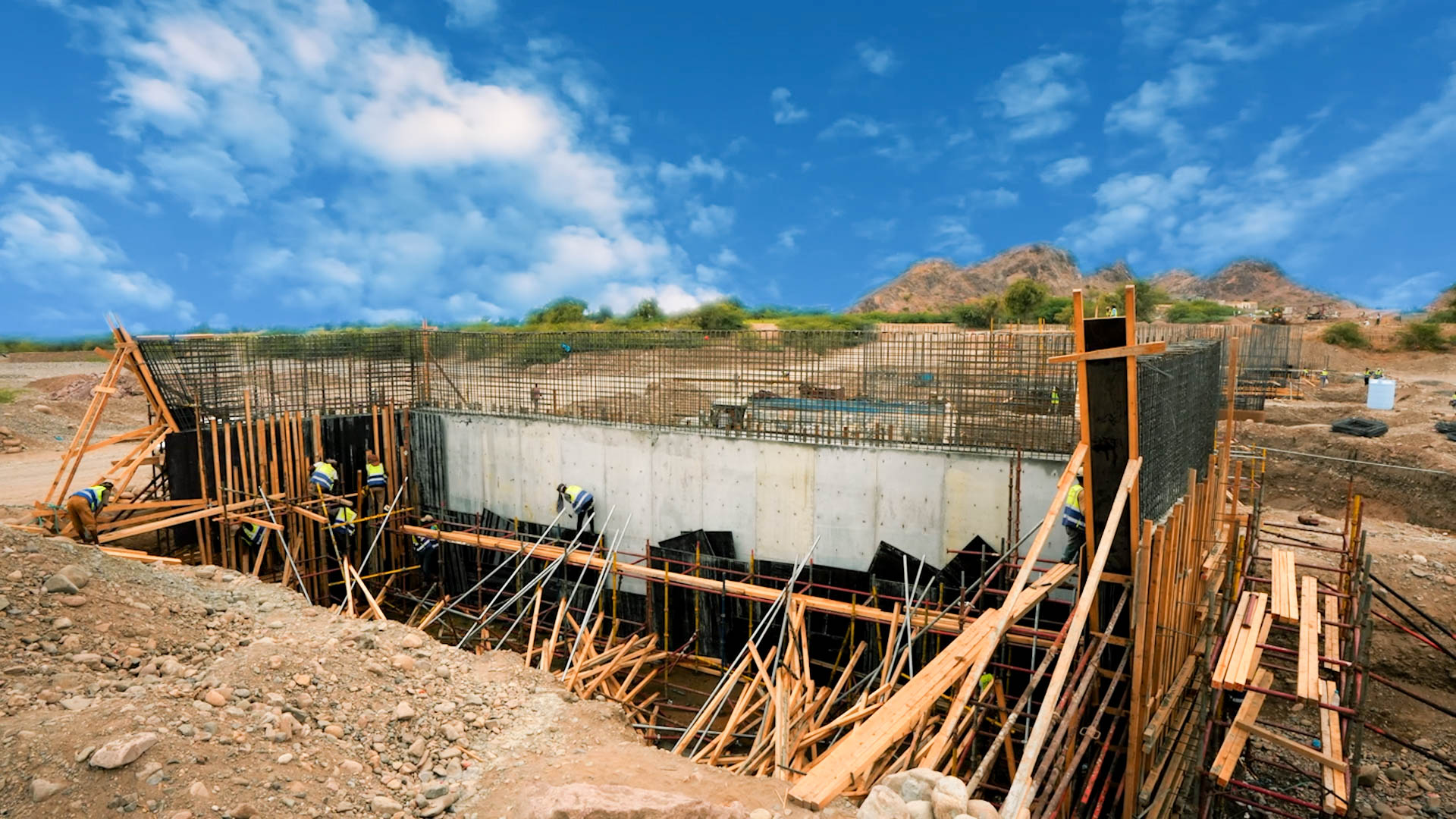

• At both ends of the bridge, retaining walls were constructed to ensure lateral stability and durability.

• Rubber bearings were installed between the girders and deck to absorb shocks and maintain long-term structural performance.

Deck System and Prefabricated Construction

• A total of 45 secondary girders were installed above the main girders to support the concrete deck slab.

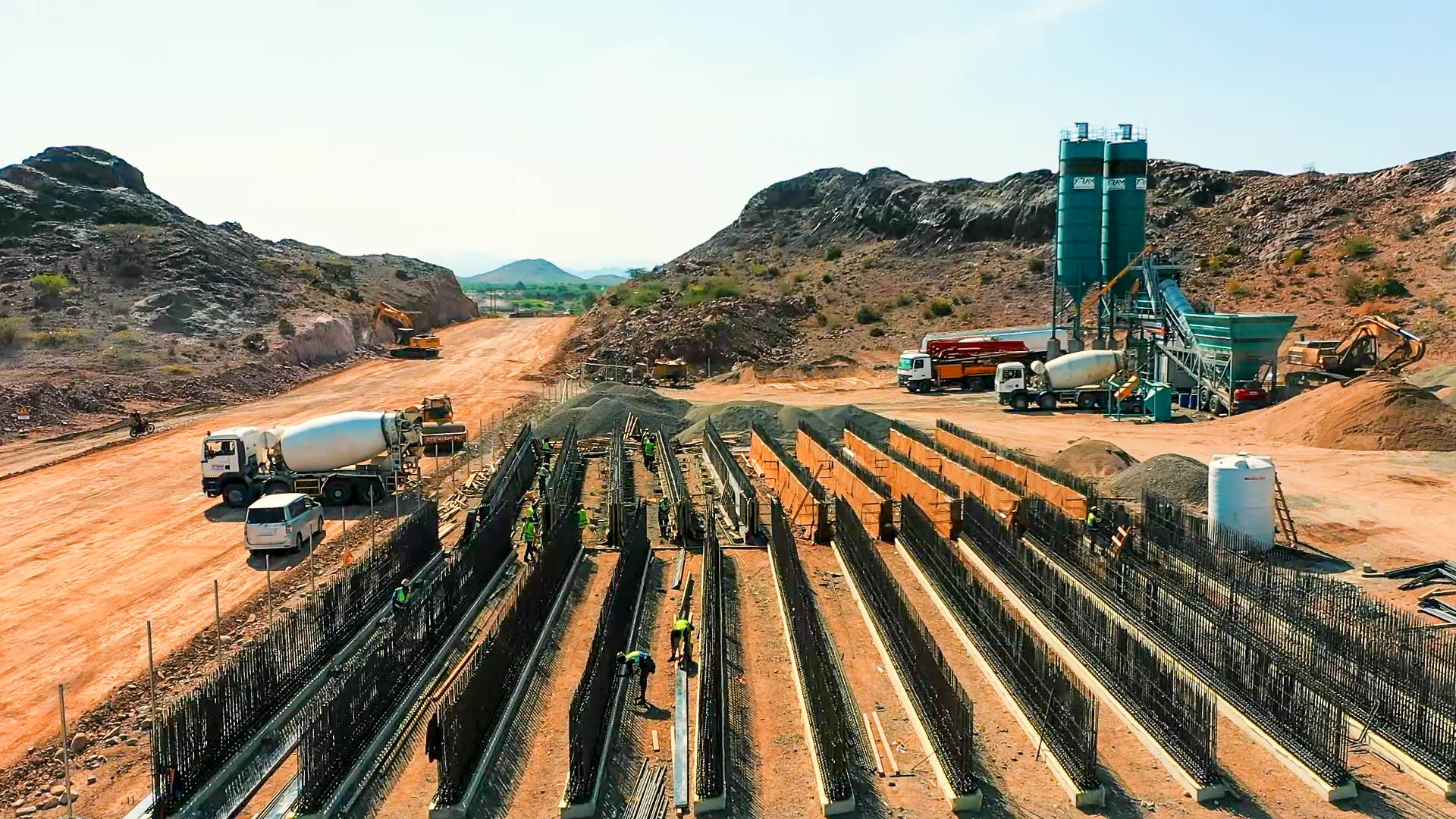

• All concrete components — including the secondary girders and 800 precast deck slabs — were manufactured off-site.

• The slabs were carefully installed and interconnected, after which the final concrete layer was poured on-site to complete the deck.

Quality Assurance and Technical Standards

The project was executed by Yaram Trading & Contracting, which ensured the highest levels of quality and precision. A modern concrete batching plant was established at the project site, guaranteeing that the concrete met all technical specifications and that execution efficiency remained consistently high.
